UHLED Bendable Curved Led Screen Double Sides Full Color RGB

Product Categories
Shenzhen Longvision Technology Co., Ltd.
Contact Now

UHLED Bendable Curved Led Screen Double Sides Full Color RGB

Place of Origin : Guangdong, China

Model Number : LC Series

Brand Name : Longvision

Packaging Details : wooden/carton case

Supply Ability : 3000 Sets per Month

MOQ : 2 Sets

Price : negotiable

Certification : CE, ROHS, UL, FCC

Payment Terms : T/T

Delivery Time : 7-20 work days

Application : Coffie Shop 4s Car shop restaurant

Color : Black

Panel Size : 640mmx640mm

Pixel Pitch : P2 P2.5 P3

Function : SDK

Brightness : 600 -6000cd/sqm

Certificate : CE ROHS FCC

Warranty : 2years

Life span : 100000 Hrs

Refresh rate : 1920Hz-3840Hz

Power Supply : AC100-240V(50-60Hz)

IP rate : IP43/IP65

Viewing angle : H140 V140

Led Lamp : SMD/2121/1921

Control system : Synchronous/Asynchronous/3G Wireles

Port : Shenzhen port

Contact Now

UHLED Bendable Curved Led Screen Double Sides Full Color RGB

Product Description

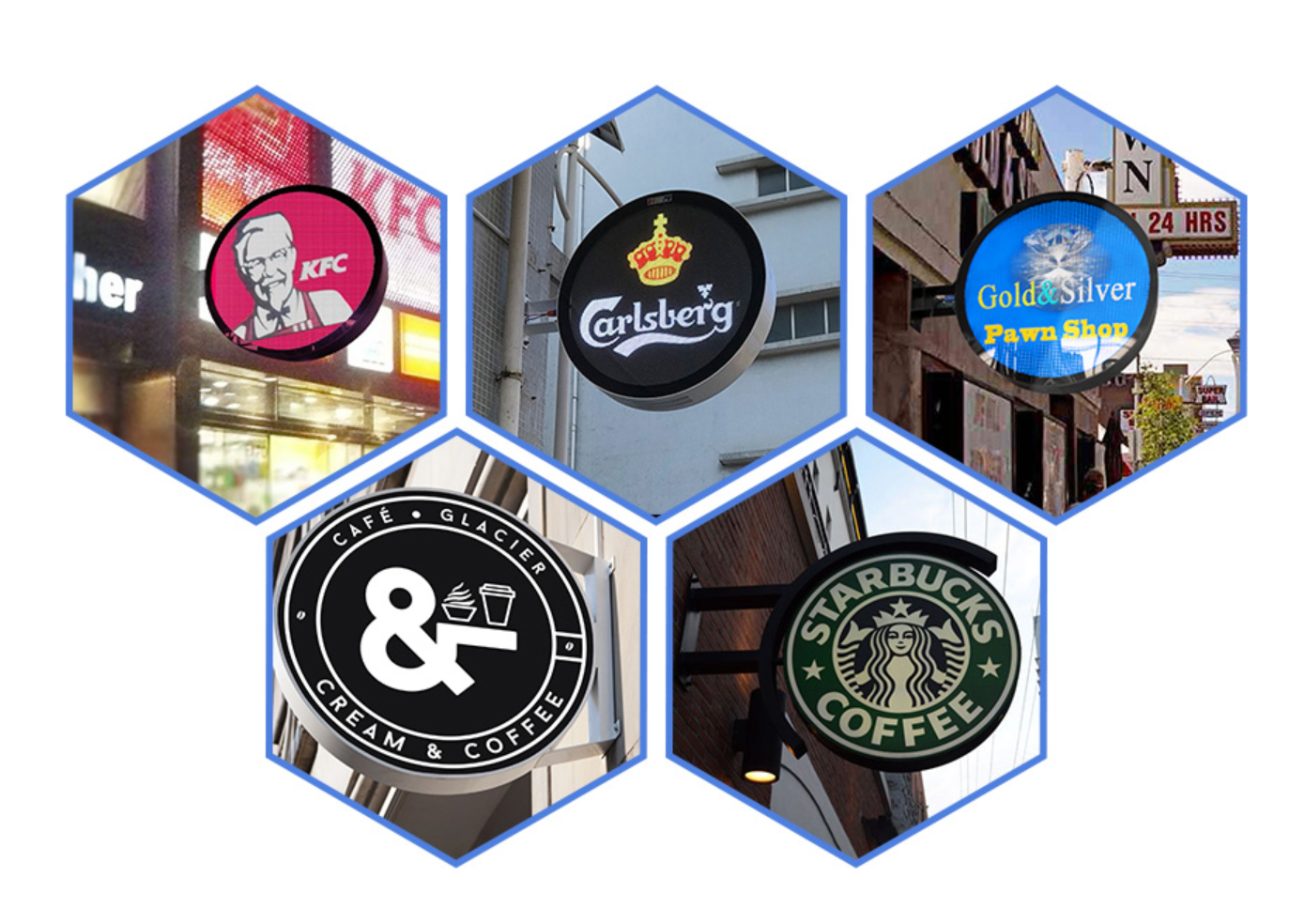

mostly used for creative decoration, product display, LOGO signboard display, such as enterprise exhibition hall decoration, party building decoration display, restaurant/restaurant dishes display, brand store logo display, shop facade display, Coffie Shop, 4S Car Shop, a number of combinations of creative modeling
UHLED Bendable Curved Led Screen Double Sides Full Color RGB
UHLED Bendable Curved Led Screen Double Sides Full Color RGB


* Fan-shaped module, seamless stitching

The diameter of the 640 circle is evenly cut into 4 right-angle fan, seamless stitching.
UHLED Bendable Curved Led Screen Double Sides Full Color RGB

*Creative Desgn
Thin and beautiful
Creative smooth edge frame; Beautiful and generous, the weight only 10kg, can be lifted wall mounted side mounted,
good-looking and easy to use

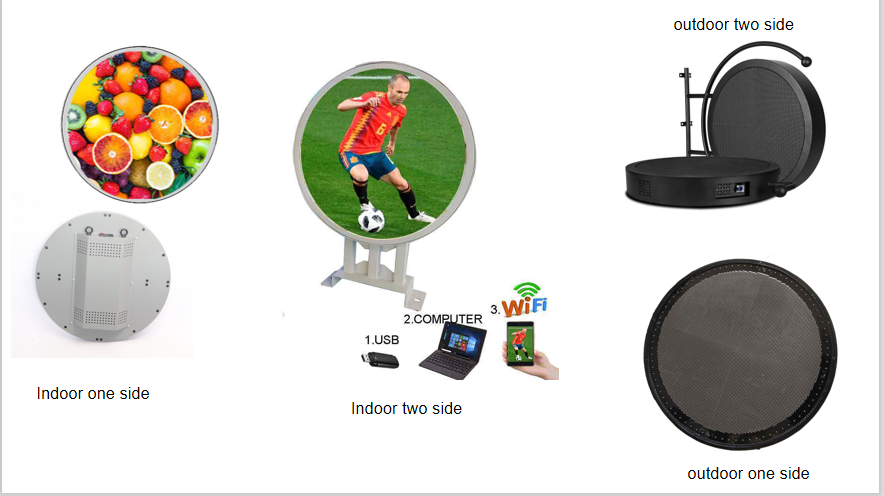

Wifi control , Outdoor and Indoor, Single and Double side for Choice

UHLED Bendable Curved Led Screen Double Sides Full Color RGB

Simple and easy to install
It could use as logo video, Hanging video, Ceiling video.
Better way to reach customers, Led display taken the place of traditional sign

UHLED Bendable Curved Led Screen Double Sides Full Color RGB


Control schematic

Supports 3G 4G WIFI Internet connection. Quickly and simply change your content anytime, anywhere.
It can meets customers creative design and unique showing.

UHLED Bendable Curved Led Screen Double Sides Full Color RGB

Specification
Model
P2.5
P2.5


Pixel Pitch
2.5mm
2.5mm


Application
Indoor
Outdoor


LED Configuration
SMD2121
SMD1415


Pixel Density (dots/㎡)
160,000
160,000


Module size
320-×320mm
320-×320mm


Module Resolution
128×128dots
128×128dots


Cabinet Size
640×640mm
640×640mm


Cabinet Resolution
256×256dots
256×256dots


Cabinet Weight
10kg
12kg


IP Rating ( front/back)
IP43
IP65


Brightness Intensity
≥600cd/㎡
≥6000cd/㎡


Viewing Angle
140°
140°


View Distance
＞2m
＞2m


Gray Scale
16bit
16bit


Max.Consumption (m²)
35W
60W


Operating Life
100,000hours



Refresh Frequency
≥3840HZ
≥3840HZ


Control Mode
Synchronous display with control PC by DVI



Operation Power
AC100/240 50/60HZ



Operating Condition
- 40℃~+85℃, 10~90% RH







FAQ
Q1. What about LED Display MOQ?
A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q2. What about Longvision capacity?
A2.3000sqm per month. 8 modernized dust-free and static-free production lines, 6 new YAMAHA and PANASONIC high speed SMT machines, 2 large leadless reflow oven,250 skilled workers.
Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock,10-15 days for the new production led finished screen according to the size and quantities of your order.
Q4. How about the warranty time?
A4. Our standard is 2 years.But you are willing to pay extra money for after sales and adopt industry top quality material, we can accept 3-5 years warranty.
Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
