Super Light Thin Outdoor Fixed Led Display Billboard Led Screen P3 P4 P5 P6 P8 P10

Place of Origin : Guangdong, China

Model Number : LW Series

Brand Name : Longvision

Packaging Details : wooden/carton case

Supply Ability : 3000 Square Meter/Square Meters per Month

MOQ : 2 Square Meters

Price : negotiable

Certification : CE, ROHS, UL, FCC

Payment Terms : T/T

Delivery Time : 7-20 work days

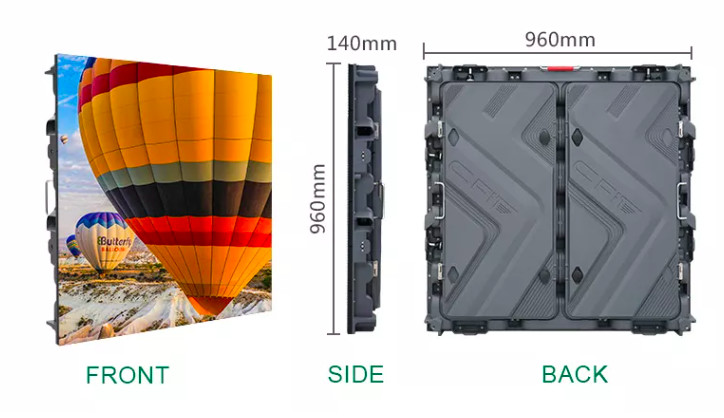

Panel Size : 960mmx960mm

Pixel Pitch : P2.5 P3 P4 P5 P6 P8 P10

Brightness : 5500-7000cd/sqm

Viewing angle : 140 /140

Cabinet material : Die- casting Magnesium Alloy

Refresh rate : 1920/3840

Weight : 25kg

IP rate : IP65

Input voltage : AC110V / 220V

Contact Now






Advantages

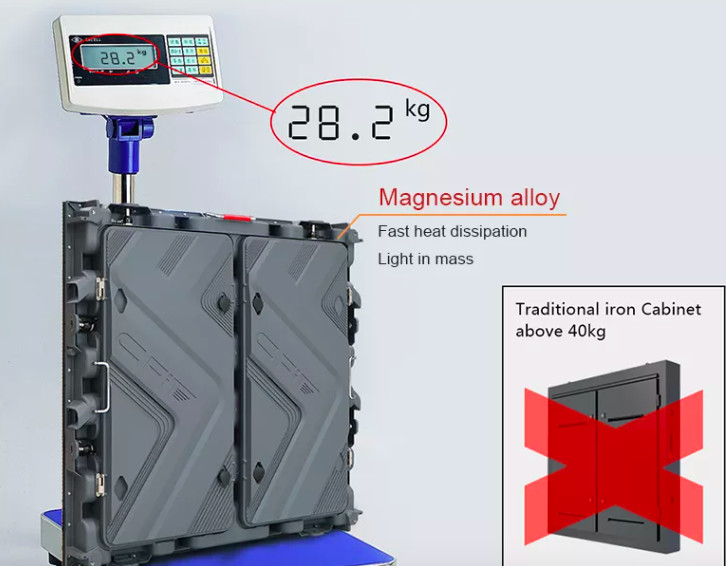

1. Lighter and thinner:
15kg/m2 lighter than the conventional iron box, 20% thinner than the conventional box, saving transportation space and reducing transportation weight, reducing the load bearing requirements of the building and steel structure
2. One Cabinet of three uses:
can be advertising fixed installation, adding hanging beam aviation plug and fast lock changing to be LED rental screen, adding top cover and bracket changing to be LED stadium screen
3. High cost performance:
can support as the same price of iron cabinet, aluminum magnesium alloy material can resist corrosion and rust.
4. Outdoor all different pixel common uses :
can be adapted to outdoor all P2.5 to P20 320x160mm size modules
5. Higher precision:
Die casting process CNC processing, shape tolerance plus or minus 0.1mm, flatness tolerance < 0.5mm. Integral forming without deformation, quick installation

Specification
Pixel Picth
P5
P6.67
P8
P10
LED Configuration
SMD 3 IN 1
SMD 3 IN 1
SMD 3 IN 1
SMD 3 IN 1
Pixel Density
40000 pixel/m2
22500pixel/m2
15625pixel/m2
10000pixel/m2
Module size
320*160mm
320*160mm
320*160mm
320*160mm
Module Resolution
64*32 dots
48*24 dots
40*20 dots
32*16 dots
Screen Size
Customize
Customize
Customize
Customize
Cabinet Size
960*960 mm
960*960 mm
960*960 mm
960*960 mm
Cabinet Resolution
192*192 dots
144*144 dots
120*120 dots
96*96 dots
Cabinet Weight
13kg
13kg
13kg
13kg
IP Rating
IP65
IP65
IP65
IP65
Gray Scale
16 bit
16 bit
16 bit
16 bit
Display Scale
16.7M
16.7M
16.7M
16.7M
Max.Power Consumption
700w/panel
700w/panel
700w/panel
700w/panel
Ave.Power Consumption
200w/panel
200w/panel
200w/panel
200w/panel
Refresh Frequency
1920Hz
1920Hz
1920Hz
1920Hz
Operating Power
AC 96~242V
AC 96~242V
AC 96~242V
AC 96~242V
Operating Humidity
10~90%RH
10~90%RH
10~90%RH
10~90%RH
Operating Life
100,000Hours
100,000Hours
100,000Hours
100,000Hours


Product Discription
Super Light Thin Outdoor Fixed Led Display Billboard Led Screen P3 P4 P5 P6 P8 P10Super Light Thin Outdoor Fixed Led Display Billboard Led Screen P3 P4 P5 P6 P8 P10Super Light Thin Outdoor Fixed Led Display Billboard Led Screen P3 P4 P5 P6 P8 P10

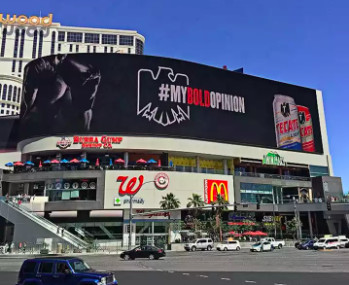

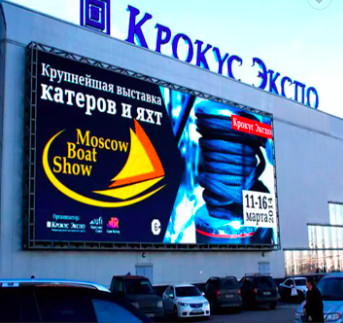

Application
Super Light Thin Outdoor Fixed Led Display Billboard Led Screen P3 P4 P5 P6 P8 P10Super Light Thin Outdoor Fixed Led Display Billboard Led Screen P3 P4 P5 P6 P8 P10


FAQ


Q1. What about LED Display MOQ?

A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q2. What about Longvision capacity?
A2.3000sqm per month. 8 modernized dust-free and static-free production lines, 6 new YAMAHA and PANASONIC high speed SMT machines, 2 large leadless reflow oven,250 skilled workers.
Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock,10-15 days for the new production led finished screen according to the size and quantities of your order.
Q4. How about the warranty time?
A4. Our standard is 2 years.But you are willing to pay extra money for after sales and adopt industry top quality material, we can accept 3-5 years warranty.
Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
